Carestream Imaging

Instructions for Carestream Integration

MouthWatch cameras easily integrate with Carestream Dental imaging software. Use the MouthWatch camera to capture images of the patient and store them directly into the patient record.

Step 1 – Download the Button Capture Software

• Use this link to begin the download: DOWNLOAD MOUTHWATCH CAPTURE

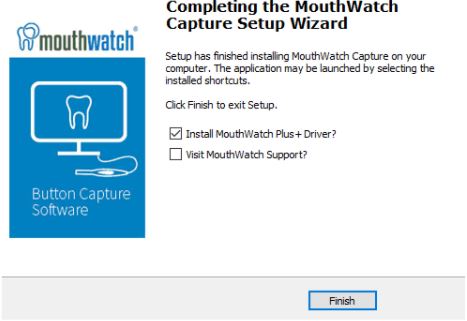

  Important: If setting up a MouthWatch Plus+ make sure to install the required driver by checking the box at this step:




• Right click on the MouthWatch Capture icon in the system tray

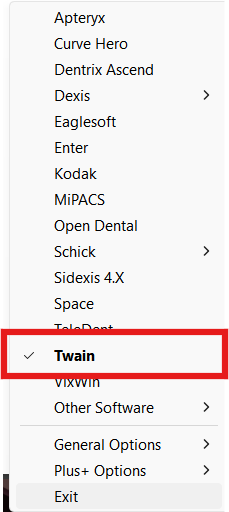

• Select TWAIN from the Button Capture Software menu

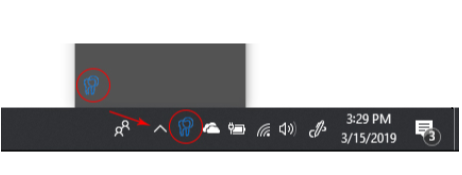

Quick Tip: If you don’t see the MouthWatch Capture icon, click the ^ button (indicated by the red arrow in the photo below) to expand the System Tray. You can drag and drop the icon from the expanded System Tray down to your Taskbar.



Step 2 – Plug in the MouthWatch Camera

Make sure that you plug the USB connector into a powered USB port. Sometimes, these are located on the front or back of the computer. If your monitor has USB ports, these may not be powered.

Note: If setting up a MouthWatch Plus+ use a USB 3.0 port.



Step 3 – MouthWatch Capture Recognizes The Camera

Once the camera is plugged in, the MouthWatch Capture icon should turn blue in the system tray indicating it sees the camera.



Step 4 – Select Mouthwatch in Carestream

Go to File, Twain and Select Source. Choose Mouthwatch and click close/ok.

Step 6 - Capture Images

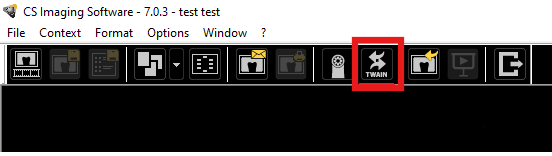

Once in the patient record, click TWAIN to launch the camera

• This will launch the video capture window

• After taking images, close the camera using the X in the top right corner.
  Do not press Scan


• Then click the Twain icon on the toolbar again, this will upload all the images at once.

Step 8 – All Set!
